The accurate shaping of sheet metal components is critical to almost all industries. From complex electronic casings to strong structural parts, the precision of bent features affects how a part works and how smoothly it fits with other parts in the final assembly. At the heart of this accuracy lies what seems, at first glance, to be a trivial parameter: the K-Factor.
This guide will step by step break down the K-Factor, detailing its meaning, how it’s computed, what factors influence it, and its practical implications for achieving exact sheet metal design and bends.
Understanding the K-Factor and Why It Matters
The K-Factor in the bending of a piece of metal sheet quantifies the location of the neutral axis in the material of the bend. The neutral axis is an imaginary line within the material that does not elongate or compress. While in the flat state before bending it, the neutral axis is assumed to lie in the geometric center of the material’s thickness. During bending, the outer side of the bend region undergoes stretching, while the inside segment of the bend region undergoes compression. Because of this difference in strain, the neutral axis gets relocated towards the center radius of the bend.
The K-Factor in a bend describes the ratio of the distance from the inside surface of the material to the neutral axis to the thickness of the sheet metal(Mt). Thus, if there is a K Factor of 0.5, that would mean assuming that the neutral axis indeed sits right along the middle of the thickness. This is what we call an ideal world scenario. In reality, this is hardly achieved. In most cases, it is between 0.3 to 0.5.
Why is that important? The exact position of the neutral axis is very important since it governs the physical amount of material needed to be cut in order to achieve a particular bend. This length referred to as the bend allowance (BA) or bend deduction (BD) is added or subtracted to the flat measurements of the part to attain a desired and correct shape of the part after bending. If the K-factor used in the calculations is wrong, the resultant flat pattern will also be wrong, resulting in bent parts being over or under the intended length. Such inaccuracies in measurement will create great difficulties during assembly, increase scrap rates, and escalate production costs.
How to Calculate the K-Factor: Formula and Example
The K-Factor is needed to calculate both the bend allowance and the flat map for a sheet metal part. Although the exact number is often derived from industry practices or empirical data, knowing the underlying formula is important.
Basic K-Factor Formula Explained
The K-Factor (K) is defined by the following simple ratio:
K=Tt
Where:
- t = distance from the inside surface of the bend to the neutral axis.
- T = material thickness.
This equation shows the neutral axis position in correlation to the thickness of the material. A higher K-Factor means the neutral axis is nearer to the center of the material, and a lower K-Factor means it is closer to the inside radius.
The formula which incorporates K-Factor in the bend allowance calculation is more comprehensive:
BA=180π×A×(R+K×T)
Where:
- BA = Bend Allowance (the length of material along the neutral axis within the bend).
- π≈3.14159
- A = Bend Angle (the amount of degrees the material is bent, measured from the straight line, not the included angle).
- R = Inside Bend Radius.
- K = K-Factor.
- T = Material Thickness.
Step-by-Step K-Factor Calculation Example
As for the use of the k-factor in determining the bend allowance, let us take a practical example.
Scenario: You need to bend a sheet metal part with the following specifications:
- Material Thickness (T) = 2.0 mm
- Inside Bend Radius (R) = 3.0 mm
- Bend Angle (A) = 90 degrees (meaning a 90-degree bend, often stated as a 90-degree supplementary angle in some contexts, but here referring to the angle of the bend itself)
- Assumed K-Factor (K) = 0.44
Calculation:
- Identify known variables:
T=2.0 mm R=3.0 mm A=90 degrees K=0.44
- Apply the Bend Allowance formula:
BA=180π×A×(R+K×T)
- Substitute the values:
BA=1803.14159×90×(3.0+0.44×2.0)
- Perform calculations within the parentheses first:
0.44×2.0=0.88 3.0+0.88=3.88
- Continue with the multiplication:
1803.14159×90=0.017453×90=1.57077
- Final Bend Allowance:
BA=1.57077×3.88≈6.09 mm
Therefore, for this specific bend, approximately 6.09 mm of material length will be consumed by the bend itself along the neutral axis. This value is critical for determining the overall flat pattern length of the component before it is cut and formed.
To help you get started, refer to the K-factor chart below. It provides commonly used K-factor values for general fabrication with steel, aluminum, and stainless steel.
| Generic K-Factors | Aluminum | Steel | |
| Radius | Soft Materials | Medium Materials | Hard Materials |
| Air Bending | |||
| 0 to Thickness | 0.33 | 0.38 | 0.40 |
| Thickness to 3x | 0.40 | 0.43 | 0.45 |
| Greater than 3x | 0.50 | 0.50 | 0.50 |
| Bottoming | |||
| 0 to Thickness | 0.42 | 0.44 | 0.46 |
| Thickness to 3x | 0.46 | 0.47 | 0.48 |
| Greater than 3x | 0.50 | 0.50 | 0.50 |
| Coining | |||
| 0 to Thickness | 0.38 | 0.41 | 0.44 |
| Thickness to 3x | 0.44 | 0.46 | 0.47 |
| Greater than 3x | 0.50 | 0.50 | 0.50 |
K-Factor vs. Y-Factor: What’s the Difference
Most use the K-Factor to calculate bending, but in some software applications and specific industry contexts, the Y-Factor is implemented, too. You should understand the difference between them to get reliable results all the time.
Broadly speaking, Y-Factor is a variant of K-Factor created to make calculations easier in specific cases or to better embody the behavior of the material. It can be expressed as:
Y=K×2π
The above demonstrates that Y-Factor is proportional to the K-Factor. If we take Y-Factor equal to 0.5, then K-Factor would approximately equal 0.318 (0.5 / (π/2)).
Their application and conceptual origin show where the most fundamental difference lies. The K-Factor is dictated by the physical position of the neutral axis in relation to bending. Y-Factor can be more convenient elsewhere due to its context and the way it is intended to be applied. Some resort to it to relax assumptions of some “stress-free” bending. Different sheet metal standards or CAD systems and models might stick to one or the other as default.
Knowing the K-Factor in practice means you can easily derive the Y-Factor and the other way around. The critical thing is that whichever you choose to utilize, K-Factor or Y-Factor, needs to be uniformly adopted throughout the design and manufacturing phases and all stakeholders, including designers, engineers, and machine operators, are bound to the same definition of parameters for a given bend project. Using incorrect conversions or mixing them would guarantee dimensional errors.
Factors Influencing K-Factor Values
The K-Factor is not a universal constant as it changes dramatically based on several material and process parameters. To choose or determine a K-Factor for a more exact fabrication, the influencing factors should be taken into consideration.
Material Properties
The mechanical properties of the sheet metal material itself significantly influence the K Factor.
- Ductility: More ductiles (those that can undergo a large amount of deformation before fracture) tend to have a K-Factor value approaching 0.5. This is due to the fact that the neutral axis shifts less toward the take place bending radius. Higher K-Factors are most likely with soft materials like aluminum or copper.
- Yield Strength and Tensile Strength: Higher yield strength or tensile strength makes a material less ductile, which is common among certain gauges of steel. The shift in neutral axis can become more drastic leading to decreased K Factor.
Material Thickness
The K-Factor as a ratio, is theoretically indifferent to absolute thickness, but in practice, extremely thin or thick materials tend to behave differently. Due to greater resistance to deformation, thicker materials display more neutral axis shift.
Material Hardness
Generally, harder materials have lower ductility, which makes them more susceptible to breaking when they are bent. This could cause the neutral axis to be displaced more towards the bending inner radius, yielding a reduced K-Factor than softer variations of the same material type. Affects on K-Factor include temper or heat treatment performed on the material.
Bend Radius
The relationship between the inside bend radius (R) and the material thickness (T) is a significant determinant.
- Small R/T Ratios: When the inside bend radius is very small relative to the material thickness (i.e., tight bends), the material experiences more extreme deformation. This severe compression and stretching typically cause the neutral axis to shift more aggressively towards the inside, resulting in a lower K-Factor.
- Large R/T Ratios: As the inside bend radius increases relative to the thickness, the material deformation becomes less severe. The neutral axis shifts less, and the K-Factor tends to increase, approaching 0.5.

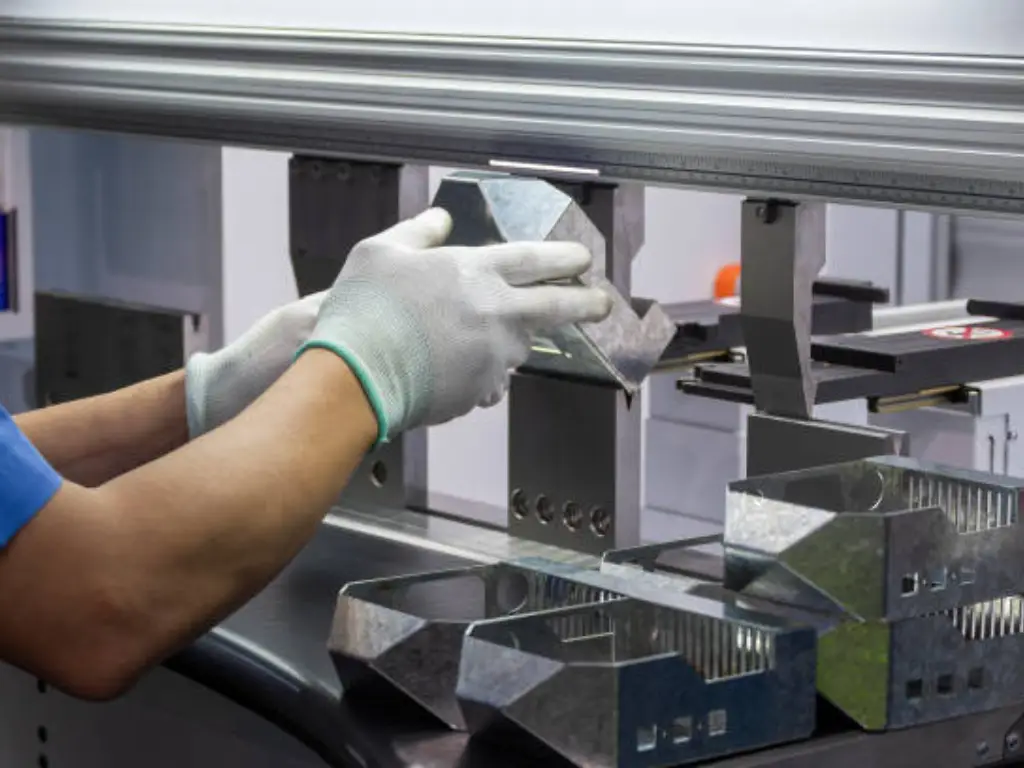

Bending Method
The relationship between the inside bend radius (R) and the material thickness (T) is a significant determinant.

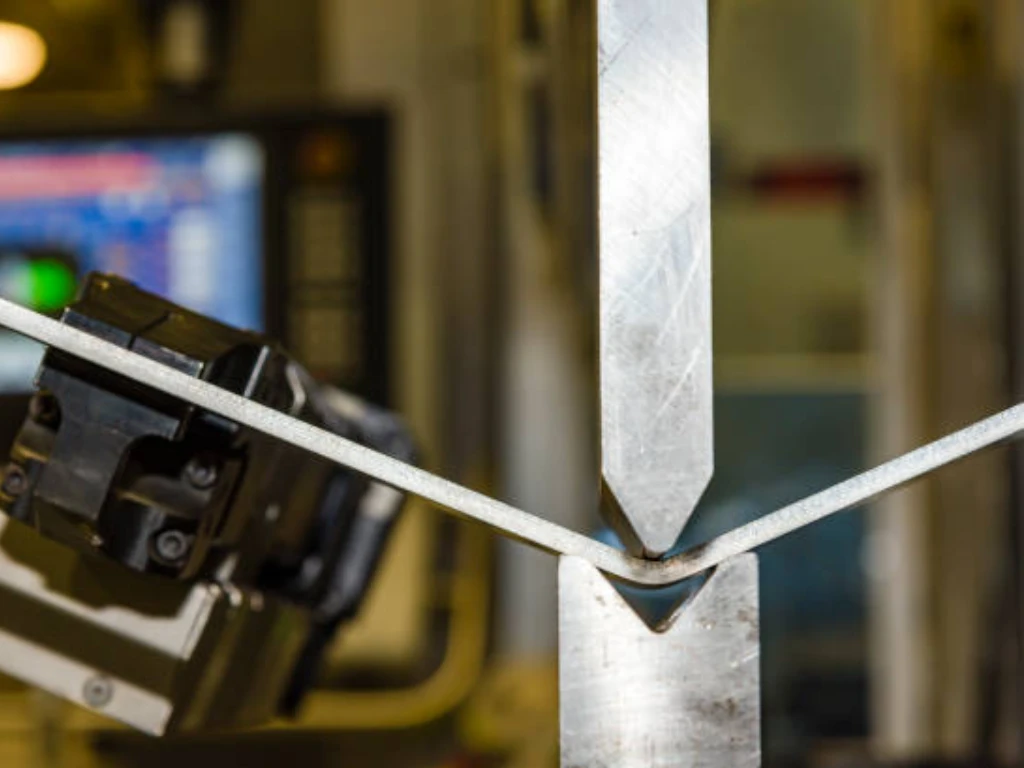

- Air Bending: This is the most common method of forming, where the punch pushes the material into a V-die without fully contacting the bottom. The bend angle is determined by the depth of punch penetration. Air forming typically allows for more material stretch and a more predictable K-Factor if other parameters are controlled.
- Bottoming: In bottoming, the punch forces the material to conform to the precise angle of the V-die, often at higher tonnage. This can induce more stress and compression, potentially affecting the K-Factor differently than air bending.
- Coining: Coining involves extremely high tonnage, forcing the punch nose and the material into the die with significant compressive forces. This process can cause significant material flow and often results in a K-Factor closer to 0.5 due to the extreme deformation and potential obliteration of the neutral axis concept in such an extreme state.
Grain Direction
The position of a bend line on a grain flow of sheet metal is also influential on K-Factor. Bending along the grain yields less resistance and produces slightly different K-Factor values than bending against the grain. Though often overlooked, this becomes more pronounced with increasing material thickness, or very sharp bend radii. This should be taken into account for important applications.
Common Mistakes to Avoid When Using the K-Factor in Sheet Metal
It is important to mention that using the K-Factor incorrectly often results in sheet metal fabrication problems. To achieve good and stable results, you should avoid making these typical errors.
Assuming a Universal K-Factor (e.g., K=0.5): This turns out to be the most common mistake. K = 0.5 is frequently taught as the theoretical “optimal” value, but in practice, it does not often occur in the real world. Relying on a constant K-Factor for every material, thickness, or bend radius will create a perpetual gap in accuracy with your bent parts. Even different materials from the same alloy family will have different K Factors.
Not Considering What Each Material Is: If the type of material and different properties are ignored (such as aluminum vs. stainless steel, different tempers of the same alloy), it can pose significant deviations. Every material will respond uniquely when subjected to bending stress, thereby altering the shift of its neutral axis.
Ignoring the Bend Radius/Thickness Ratio: A close relationship exists between the radius of the bend and the thickness of the material. Using a K-Factor derived from a large bend radius for a very tight bend (or vice versa) will produce incorrect flat patterns, especially when considering the minimum bend radius. Make sure you select a suitable value of K-Factor for the given R/T ratio.
Inconsistent K-Factor Application in Software: Many CAD and CAM systems allow for K-Factor input. A common mistake is not verifying that the K-Factor used in the design software matches the K-Factor expected by the bending machinery or the actual material behavior. Discrepancies here lead to designs that cannot be manufactured to spec.
Neglecting Empirical Verification: Relying solely on theoretical values or generalized tables without any form of empirical testing for critical applications is risky. Actual material batches, tooling conditions, and machine calibrations can introduce variations. Performing bend tests and back-calculating the K-Factor for specific setups is the most reliable method for achieving high precision.
Applying K-Factor to 180° or Near-180° Bends: K-Factor calculations are not suitable for fully closed bends (like 180° hems) or very tight angles above 174°. In such cases, the material undergoes extreme deformation, and the neutral axis behavior deviates significantly from standard bending assumptions. For accurate flat lengths, rely on empirical data or specialized CAD features instead.
By being aware of these common pitfalls and implementing robust practices for K-Factor determination and application, fabricators can significantly reduce errors, improve part quality, and optimize their production processes.

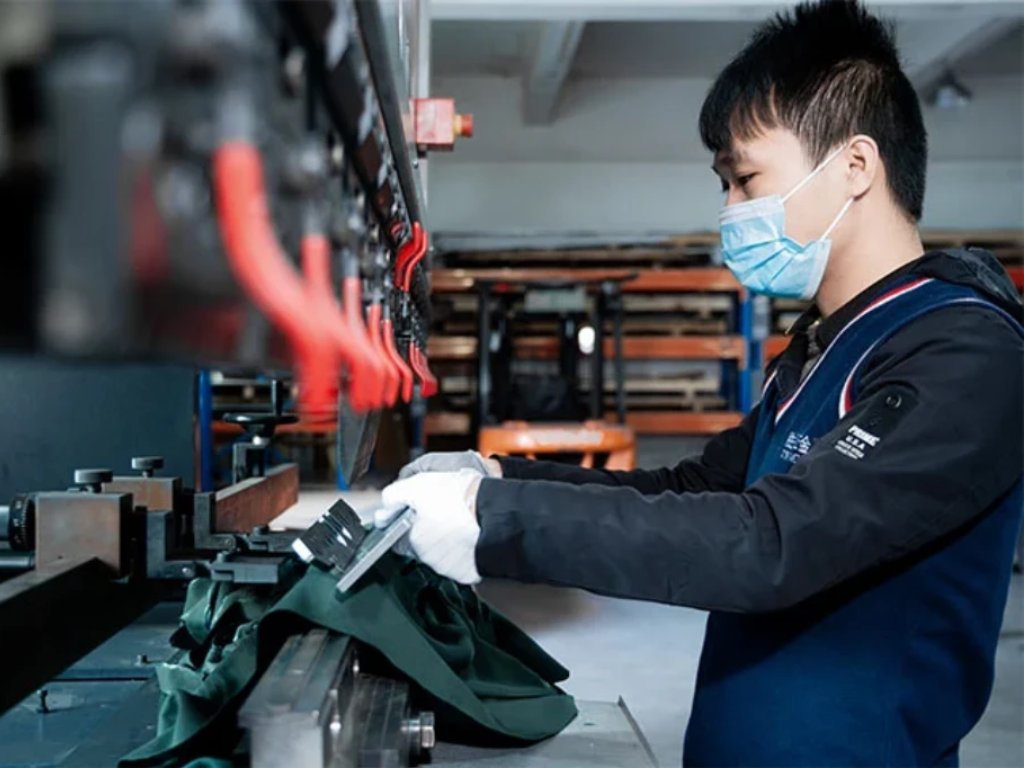

TZR: Your Partner in Precision Sheet Metal Fabrication
It’s never straightforward to maintain constant accuracy in the intricate processes of sheet metal manufacturing. TZR, which is one of the prominent sheet metal fabrication companies, specializes in serving the automotive, medical, 3D printing, and renewable energy industries. We expertly handle materials like steel, aluminum, copper, and brass, utilizing the latest CAD and SolidWorks software for seamless integration.
Our dedication to superior quality is underscored by our yield rate of over 98%. We excel at handling complex bend angles, minimizing marks, and pay a lot of attention to every process. Our engineers are well-versed with the material’s physics and bending dynamics, having mastery over the K-Factor through many materials and geometries. With state of the art machinery and skilled operators, accuracy is pretty much guaranteed. In addition, we offer professional DFM consultations to improve the design’s ease of manufacture while meeting production goals. At TZR, we don’t just offer parts; we deliver dependable service to achieve success in the client’s project.
Conclusion
The K-Factor is one of the main pillars in the field of sheet metal fabrication. In practical terms, it quantifies how a particular metal reacts to bending, therefore serving as the most basic input for developing flat patterns and subsequently creating precession-bent works. Knowing the K-Factor, its calculation, multiple underlying factors of its value, and the most notable and sometimes overlooked mistakes empowers fabricators and designers to bring precision to their designs.
It takes significant effort to master the K-Factor because it contributes to higher quality, better efficiency, and eventual success with sheet metal bending. Precision in manufacturing can be enhanced by attending to the characteristics of materials, the bend geometry, and the process itself, as well as by applying reliable methods for determining K-Factor, leading to greater consistency. By being accurate, engineers can face complicated design issues and still deliver sought-after results.
