Sheet Metal Fabrication

Sheet Metal Fabrication Manufacturer Covering You From Design to Assembly

TZR provides different sheet metal materials,covering aluminum, copper, steel, and stainless steel.

With a robust supply chain network, TZR can deliver any quantity of sheet metal parts, catering to low-volume, high-mix prototypes as well as high-volume production. TZR offers competitive, personalized pricing for both low and large-volume sheet metal fabrication.

Located in Dongguan, we collaborate closely with top-tier sheet metal sources and craftsmen. Leveraging our extensive sheet metal production experience, you will benefit from streamlined one-stop production, cost reduction, and exceptional assembly, design, and engineering services.

Benefits

In-house Sheet Metal Fabrication

Efficient laser cutting and CNC cutting equipment enables us to flexibly and rapidly produce high-precision metal components.

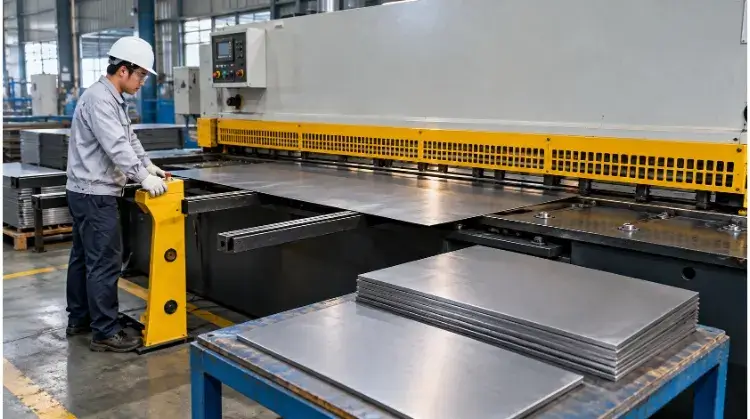

Sheet Cutting

Our workshop has advanced plasma-cutting machines, enabling us to efficiently handle large-scale sheet metal production with speed and precision.

Plasma Cutting

Creating even the most intricate shapes and angles for your project is tackled with ease, thanks to automated bending arms and cutting-edge bending equipment.

Tube Bending

We’ve recently installed a 20KW laser cutting machine, ensuring metal pieces have precision dimensions and aesthetically pleasing cutting.

Laser Cutting

Our laser tube cutting technology minimizes waste, ensuring high-precision cutting and accurate dimensional integrity to the maximum extent.

Laser Tube Cutting

We achieve high-precision engraving effects for intricate patterns with the help of powerful laser engraving machines.

Metal Laser Engraving

Our Sheet Metal Fabrication Tolerance

Feature

Description

Blank Size

10’ x 20’ (3.05 m x 6.10 m). We can accommodate larger quantities of sheet metal parts upon request.

Lead Time

7-20 days

Sheet Thickness

0.024” – 0.250” typical

General Tolerances

For single planes or flat parts, the tolerance is +/- 0.010 inches on edge-to-edge, edge-to-hole, and hole-to-hole features, as well as +/- 0.010 inches on bend-to-edge/hole features. For multi-planed bent parts, the tolerance is +/- 0.030 inches for hole-to-hole/edge, edge-to-edge, and over-formed parts, with a tolerance of +/- 1 degree for bend angles

Braking (Hydraulic)

10’ length, fingers from 3” – 6”

Punching

2-inch diameter hole capacity, or larger upon request

Materials for Sheet Metal Fabrication

With over thirty years of experience, our senior sheet metal production engineers offer tailored material recommendations to align with your product specifications, industry standards, and surface treatment needs.

Aluminum

Steel

Stainless Steel

Brass

Copper

Surface Finishing for Sheet Metal Fabrication

Recognizing the importance of surface treatment in enhancing both the aesthetics and durability of sheet metal products, we have established an in-house surface treatment workshop. With over 12 finishing options available, we ensure comprehensive solutions for every sheet metal project.

Sand Blasting

This technique entails propelling sand or other abrasives at high velocity onto sheet metal, imparting a matte texture to the metal parts in preparation for coating.

Buff Polishing

In this process, a cloth wheel is employed to polish the metal surface, imparting a shiny appearance.

Powder Coating

This method entails directly spraying powdered paint onto the metal part, followed by baking it in an oven to create a durable, wear-resistant layer.

Painting

Surface painting in sheet metal fabrication involves the precise application of powdered paint onto metal surfaces, creating a visually appealing finish.

Anodizing

Anodizing enhances a component’s rust resistance, concurrently improving surface hardness and durability.

Passivation

The process involves treating a metal surface to mitigate its susceptibility to corrosion by creating a protective oxide layer on its surface.

Black Oxide

Black oxide is a surface treatment method that forms a corrosion-resistant, black oxide layer on metals, improving both aesthetics and durability.

Electroplating

Electroplating is a method of depositing a metal layer onto a substrate using an electrolytic solution, improving appearance, corrosion resistance, and other properties.

Electrolysis

Electrolysis is a chemical process that uses an electric current to drive a non-spontaneous reaction, often involving the decomposition of substances.

Laser Engraving

Laser engraving is a precise technique employing a laser beam to etch or mark designs and text onto materials such as metal, wood, and plastic, providing personalization and customization.

Silk Screen Printing

Silk screen printing, or screen printing, utilizes a mesh stencil to apply ink onto surfaces, commonly fabric, enabling the creation of custom designs, logos, and artwork.

Brushing

Brushing is a surface finishing technique that employs abrasive brushes to achieve a textured or satin-like appearance on metal surfaces, enhancing aesthetics and reducing reflectivity.

Quote and Relax, We've Got the Rest

Let the sheet metal fabrication experts take care of your product needs. We cater to over 30 countries in Europe and the United States, offering fast and efficient sheet metal manufacturing tailored to your industry requirements. Talk to our experts today and explore the boundless possibilities that our expertise can bring you.

Design Validation

Expert designers conduct a thorough design review upon receiving your design documents, find potential pain points, and recommend ways for improvement.

Designing & Engineering

We are proficient in the latest industrial design software for sheet metal design, including CAD and SolidWorks.

Prototyping

Our team specializes in fabricating practical sheet metal prototypes, providing you with a firsthand preview of the final product before transitioning to mass production.

Manufacturing

Utilizing the latest laser cutting and welding equipment, we ensure precise thickness and dimensions in every sheet metal piece while minimizing wasted time and materials.

Surface Finishing

We offer a diverse range of in-house surface treatments to finish your sheet metal pieces, including polishing, sandblasting, and electroplating.

Applications We Served

Medical

Medical devices demand precision for intricate designs and strict adherence to medical standards. With our extensive experience, we excel in creating high-quality metal parts tailored for the medical industry.

Aerospace

We integrate lightweight and durable construction materials and methods to meet the specific requirements of the aerospace industry.

Automotive

Precision is key in crafting intricate parts while maintaining structural integrity in the automotive industry.

3D Printing

Our keen eye for detail and precise detailing of each sheet metal part makes us the top choice for 3D printer equipment.

FAQs

What is the advantage of working with TZR sheetmetal ? Why should I choose your company to make my parts?

Our industrial sheet metal fabrication services provide parts made directly from the customer’s 3D CAD model, reducing the likelihood of errors. Proprietary software automates toolpath generation to decrease manufacturing times and reduce costs.

Is a Non-Disclosure Agreement (NDA) required to do business with TZR sheetmetal ?

An NDA is not necessary to do business with TZR sheetmetal. When uploading your CAD model to our site, we employ state-of-the-art encryption and anything you upload is protected by confidentiality obligations. For more information, please contact our sales department.

What industries use TZR Sheetmetal services?

We serve a variety of industries including medical device, automotive, lighting, aerospace, technology, consumer product, and electronics.

How many machines do you have?

We currently have 4 sets laser machine 10 sets bending machine 10 sets drilling machine 2 sets robot bending machine and professional powder coating line With our long history of growth, this number is always changing.

How do I get a quote?

To get a quote for all of our services, simply upload a 3D CAD model on our site. You’ll get an interactive quote within hours with free design feedback. If there are problem areas in the submitted design, our quoting engine provides detailed information on the potential manufacturing issues and suggests possible solutions.

Can I quote my part with all services at once?

You can get a quotation with 24 hours.

What types of files do you accept?

We can accept native SolidWorks (.sldprt) or ProE (.prt) files as well as solid 3D CAD models from other CAD systems output in IGES (.igs), STEP (.stp), ACIS (.sat) or Parasolid (.x_t or .x_b) format. We can also accept .stl files. Two-dimensional (2D) drawings are not accepted.

I don’t have a 3D CAD model. Can you create one for me?

Yes, we can offer the design service.If you need assistant creating of your idea. Please send email to us and our sales and designers will contact you

Within 2 hours.

Does TZR sheetmetal offer finishing options and secondary processes with its services?

Enhanced finishing options and secondary processes are available for sheet metal processes.

Do you provide first article of inspection (FAI) service?

We offer FAIs report to you by email.
