What is Aluminium Rapid Prototyping?
In a broad sense, rapid prototyping encompasses a range of manufacturing processes aimed at quickly producing a part, model, or assembly using a three-dimensional computer-aided design (CAD), automated tools, or software. This allows engineers and designers to test, iterate, and refine their design decisions and concepts with full objects before going into full-scale production. There are multiple methodologies under rapid prototyping, each with varying strengths in speed, material endurance, and complexity.
Rapid aluminum prototyping follows the same principles of rapid prototyping, but incorporates the use of aluminum alloys. Aluminum’s prototyping is a prized material because of its light weight, high corrosion resistance, electrical and thermal conductivity, while also being able to achieve a high aesthetic finish. Prototypes made from aluminum are also known to reproduce the mechanical properties and performance characteristics of final production parts, especially if those parts are also intended to be aluminum.
Aluminium rapid prototyping serves multiple purposes in a product development lifecycle. They can serve as one of the validation tools, allowing the assessment of form, fit and function physically. These prototypes can further be used by engineers in ergonomic studies, assembly exercises, functional evaluations under operational or quasi-loads, and ascertaining design defects or improvements towards the models quite early on in the process. Through prototyping, the iterative process is made and errors which are often identified in the later heavy tooling and bulk production phase are rectified. This drastic cost-cutting approach deals with hefty expenses and modifications that only reveal themselves when it is too late in the process. Prototyping further enables teams to physically model concepts and enables them to make decisive decisions, especially for new ideas dealing with innovation and experimentation, which ultimately decreases time to market for the new products.
Common Aluminium Alloys Used in Rapid Prototyping
Choosing an appropriate aluminum alloy for rapid prototyping is pivotal, as an alloy’s particular properties will greatly impact the prototype’s functionality, behavior, and how well the prototype can be tested. Aluminium is rarely used in its pure form for structural applications; instead, copper, magnesium, silicon, manganese, and zinc are added to the aluminum to strengthen its mechanical properties. A distinct series of alloys and their specific grades provide different benefits:
| Alloy | Major Alloying Elements | Tensile Strength (MPa) | Corrosion Resistance | Machinability | Anodizing Effect | Typical Prototype Applications |
| Aluminium 6061 | Magnesium (Mg), Silicon (Si) | 190–310 | Excellent (for atmospheric conditions) | Good (easy to machine, form, weld) | Good (easy and aesthetic finish) | General structural parts, enclosures, mechanical components |
| Aluminium 7075 | Zinc (Zn) | 300–570 | Moderate (requires protection in moist or corrosive environments) | Poor (difficult to machine and weld) | Moderate (less decorative result) | High-stress prototypes, aerospace and motorsport parts |
| Aluminium 5052 | Magnesium (Mg) | 190–230 | Excellent (especially in marine and chemical environments) | Good (high formability and weldability) | Good (smooth surface possible) | Marine containers, tanks, corrosion-resistant housings |
| Aluminium 2024 | Copper (Cu) | 350–450 | Fair (susceptible to moisture corrosion) | Good (machinable, poor weldability) | Poor (low corrosion resistance after anodizing) | Aerospace structures, aircraft fuselage, fatigue-critical components |
| Aluminium 3003 | Manganese (Mn) | 160–200 | Good (for indoor and mild outdoor use) | Excellent (ideal for sheet metal work) | Fair (not for decorative anodizing) | Kitchenware, decorative panels, general-purpose sheet metal components |
Note: The tensile strength values are typical ranges based on commonly used conditions. Actual performance may vary depending on heat treatment, supplier specifications, and fabrication processes.
Key Benefits of Aluminium Rapid Prototyping
Using aluminum in the rapid prototyping stage has distinct advantages for the product development cycle. This step is important for many innovators looking to test their designs with a material that behaves similarly to the final product.
The most notable advantages are speed and decreased lead times. Rapid prototyping allows for functional aluminum parts to be obtained in days or weeks. Instead of the months it would typically take with traditional tooling. This helps to increase design iterations and problem-solving, hence speeding up the development cycle. The ability to do multiple iterations within a short period greatly reduces the overall timeline for product development.
Cost savings also mark rapid prototyping, particularly for validation and small-batch production. Since production tooling requires a hefty upfront investment, this strategy avoids incurring heavy costs upfront. With aluminum prototypes, design flaws can be discovered at an early stage, which prevents costly reworks and financial risks in later production stages. This containment of losses is crucial.
Design validation is super important. Through aluminum prototypes, there can be actual checking of geometrical aspects during the assembly and testing process. This assists in discovering issues such as how strong an object or assembly is down to defects. Such tangible assessments are necessary as opposed to computer-generated models and drawings.
Aluminum’s distinct material characteristics are quite beneficial for testing purposes. Its properties, like high strength-to-weight ratio, exceptional thermal/electrical conductivity, and corrosion resistance make sure that prototypes can be tested under real-life conditions. These factors render aluminum prototypes crucial for performance validation in high-demand applications.
Prototyping aids in a more seamless transition towards production. Prototypes offer valuable information that assists in making tooling decisions, and some techniques allow small-batch runs, which improves time to market and bridges the gap to mass production effectively.
Finally, testing with materials that are close to production grade enhances the product’s overall quality. Identifying design weaknesses and issues related to manufacturability early on makes the final product more dependable, which improves customer satisfaction and decreases warranty claims.
Key Technologies in Aluminium Rapid Prototyping
We can easily produce aluminum prototypes with the help of multiple manufacturing technologies. Every technology comes with its own set of benefits with regard to cost, time, mechanical characteristics, or geometric intricacy of the prototype. Moreover, the technology a manufacturer selects often depends on the purpose of the prototype, tolerances, specifications of the material alloy, and even the required quantity.
CNC Machining
CNC Machining, or Computer Numerical Control Machining, is a subtractive manufacturing process that involves removing material from solid blocks of aluminum, commonly referred to as billets or blanks, utilizing cutting tools controlled by computers. The prototyping process commences with a Computer-Aided Design (CAD) model which is then converted into G-code, a command language for CNC machines, that outlines the movements of the machine’s components such as end mills, drills, or lathes. Precision in fabrication, tight tolerances, and remarkably smooth finishes of aluminum parts make CNC machining, including CNC milling, one of the most sought-after processes. In addition, it is compatible with a wide variety of standard wrought aluminum alloys, thereby assuring that the material properties of the prototype are at least similar, if not identical, to those fabricated with mass production techniques.
Milling (the process of removing material by means of rotating cutters) and turning (rotating the workpiece against a fixed cutting tool) are some of the widely practiced CNC operations for aluminum, accommodating a wide range of applications. 5-axis and other modern multi-axis CNC systems make it possible to accomplish a higher level of accuracy and efficiency as these machines offer greater freedom for the workpiece and tool movement. This technology is ideal for functional prototypes that need to have the right material properties and precision dimensional accuracy together with excellent surface finish.
Metal 3D Printing (Additive Manufacturing)
The other name for metal 3D printing is additive manufacturing which includes multiple technologies that construct aluminium laser parts from a metal powder. Most common methods for aluminium include Direct Metal Laser Sintering (DMLS) or Selective Laser Melting (SLM). In these techniques of fusion, a laser of high power melts and fuses certain areas of aluminium powder using a CAD model for each cross-section. Once each layer is melted, a new layer of powder is applied until the part is done.
Compared to other forms of crafting, metal 3D printing offers complex internal features along with the ability to create highly intricate geometries that would otherwise be impossible. And it allows for rapid iterations. Although 3D printing is freer in design, some simpler tasks require more initial costs regarding materials, tools, and machine usage time. A prototype also goes through stress relief, removal of the support, surface finishing, and other processes in the latter stage to refine the tolerances and surface qualities.
Casting
Aluminium prototypes can be produced through casting, especially when the part being prototyped is meant to be cast, is highly intricate, or is designed at a lower cost relative to fully machined components for some configurations.
Investment casting can be done with patterns 3D printed from wax or castable resins which allows for the fabrication of complex aluminium prototypes without hard tooling. The 3D printed pattern is coated in a ceramic shell, the pattern itself is subsequently melted or burned out leaving a cavity into which molten aluminium is poured.
Another approach is using rapidly produced sand molds, often created with 3D printed sand casting patterns or cores, or directly 3D printing the sand molds themselves. For prototypes that need to simulate die-cast parts more closely, soft tooling or rapid tooling (machined from P20 steel or even aluminium for very short runs) can be created for prototype die casting. While involving some tooling, it is significantly faster and less expensive than production die-cast tooling. Casting is suitable for near-net shape prototypes where internal soundness and cast material properties are important.

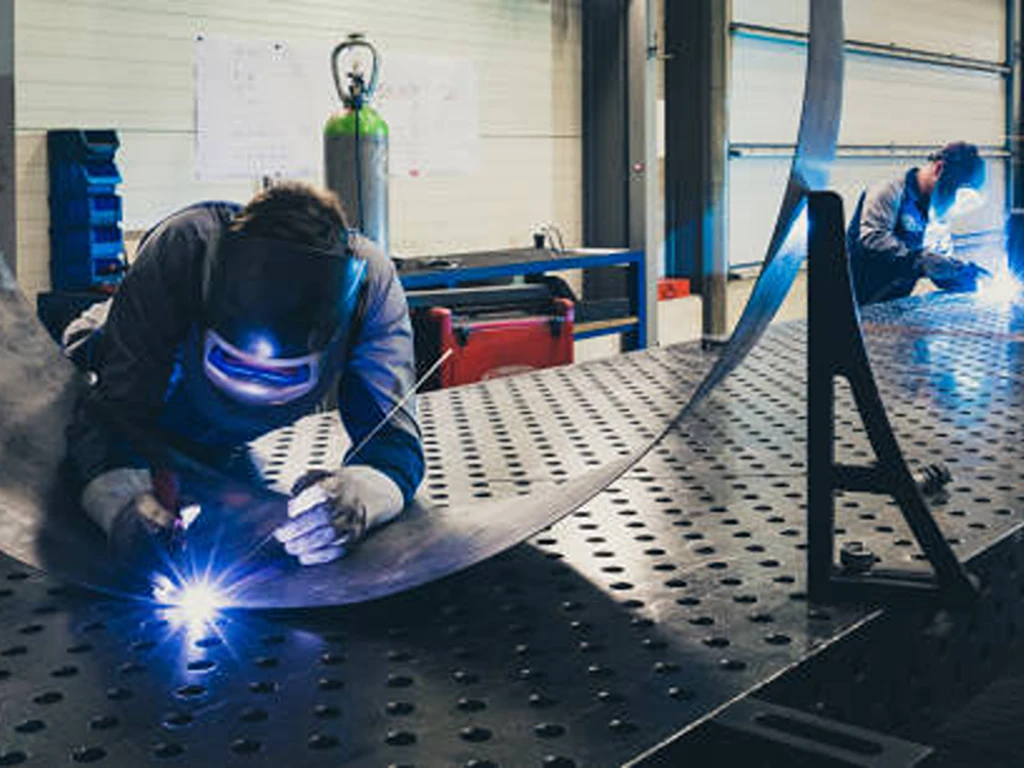

Sheet Metal Fabrication
Sheet metal fabrication involves shaping aluminium sheets into desired prototype forms through a series of processes such as cutting, bending, punching, and joining. It is an exceptionally efficient and cost-effective method for producing prototypes of enclosures, brackets, panels, chassis, and other parts that are essentially developed from a flat material profile.
The process typically starts with laser cutting or CNC punching to create the flat pattern of the part from an aluminium sheet of a specific thickness and alloy. Subsequently, press brakes are used to bend the flat pattern along designated lines to achieve the three-dimensional form. Joining methods like welding (TIG or MIG for aluminium), riveting, or using fasteners can assemble more complex structures.
Aluminium sheet metal prototypes offer an excellent strength-to-weight ratio, good dimensional accuracy, and can be rapidly produced. This method is particularly advantageous when the final product is also intended to be manufactured from sheet metal, as the prototypes can very accurately represent the characteristics and manufacturing constraints of the production parts. It allows for testing of structural integrity, fitment of internal components, and overall assembly.
Applications of Aluminium Rapid Prototyping Across Industries
Every industry benefits from aluminium rapid prototyping due to its strength, light weight, durability, thermal properties, and its impact on product development.
Aluminium is essential in aerospace for lightweight structural parts, engine components, and interior elements. Alloys such as 7075 are useful during aerodynamic testing, fit checks, and system checks before costly flight certification because of its high strength-to-weight ratio.
In the automotive sector, aluminium prototypes are widely used for the engine, transmission, chassis, suspension, and body. Prototyping enables testing performance and fuel efficiency while also supporting weight reduction to improve dynamics. Prototyping is also used in the evaluation of ergonomics and aesthetics to determine the feel of the interior.
For consumer electronics, aluminium’s sleek appearance coupled with it’s light weight and thermal conductivity is essential. Prototypes include casings for devices like laptops and smartphones, audio equipment enclosures, internal structural supports, and heat sinks to test various designs before mass production.
The medical device market makes use of aluminium prototypes for housing medical equipment, surgical instruments, and mobility aids. The lightness, sterilizability, and structural integrity of aluminum is beneficial when evaluating designs for custom tools and test models.
In automation and industrial machinery, robotics, and custom machines all make use of aluminum prototypes to construct parts, fixtures, jigs, and even robot end-effectors. The strong and precise components permit the rapid testing of automated systems which greatly improves system reliability and efficiency.
In the field of robotics, the strength to weight ratio is equally important for arms, platforms, and frames. All of these require prototyping to aid the iterative design process including testing kinematics, payload capacity, and performance in the operational environment.
Across these sectors, aluminium rapid prototyping accelerates innovation by enabling physical validation of designs, reducing development risks, and speeding up the introduction of improved products.
How to Choose the Right Aluminium Rapid Prototyping Method
Selecting the optimal aluminium rapid prototyping method requires weighing several key factors:
Part Complexity and Geometry: For intricate internal features or highly organic shapes, metal 3D printing excels. CNC machining suits moderately complex parts with good tool access. Casting can handle complex shapes, while sheet metal is best for enclosures and bracket-like forms.
Required Tolerances and Precision: If high precision and tight tolerances are critical, CNC machining generally offers the highest precision. 3D printing and casting may require post-machining for tight tolerances, while sheet metal tolerances depend on material thickness and forming complexity.
Quantity of Prototypes Needed: CNC and sheet metal are cost-effective for single parts to small batches. 3D printing is best for unique parts or very small quantities. Casting becomes more economical for slightly larger prototype runs (e.g., 5-50+) due to mold amortization.
Lead Time Constraints: Sheet metal fabrication and CNC machining can be very fast. 3D printing speed depends on part size, with post-processing adding time. Casting involves mold creation, which can extend lead times.
Budget: Sheet metal is often the most cost-effective for suitable geometries. CNC costs vary with complexity and machining time. Metal 3D printing can be more expensive, especially for larger parts, while casting costs are influenced by mold complexity.
How TZR Can Support Your Aluminium Rapid Prototyping Needs
TZR specializes in providing high-quality, responsive aluminium rapid prototyping solutions, with a strong focus on advanced sheet metal fabrication. Serving industries such as automotive, medical devices, 3D printing, and renewable energy, we understand the critical importance of precise and timely prototypes. We offer comprehensive support, from initial concept development through functional testing and even small-batch production.
Our expertise lies in transforming aluminium sheet materials into complex, accurate prototypes. We are proficient in working with a range of aluminium alloys, including popular grades like 6061, 5052, and 3003, using advanced equipment such as precision laser cutters and CNC punch/bend machines operated by skilled technicians. With over 30 years of engineering experience, we provide tailored Design for Manufacturing (DFM) support to ensure optimal manufacturability.
Ready to bring your design to life? Contact us today to start your rapid prototyping journey!
Conclusion
Aluminium rapid prototyping is essential in today’s product development process. It rapidly takes digital designs and turns them into real parts, so the design can be tested and checked for proper function. Using aluminium prototypes, engineers can test and adjust the performance of different parts which helps reduce risks and bring reliable products to the market faster. Choosing the right prototyping approach allows aluminium’s benefits to be used for successful innovation.
